SFF 8087 SAS Splitter Cable

SFF 8087 SAS Splitter Cable

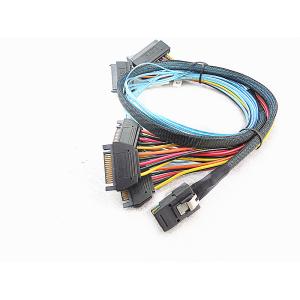

MiniSAS 6G 36P 4X SFF-8087 TO 4*SATA 7P INTERNAL COPPER CABLE

SFF-8087
Series: Mini SAS
· Cable Length:0.5 Meters
· Wire Size:30AWG,Tinned Copper,OD:1.0*2.3MM
· Plating: Au 30u"
· Color: Cable Silver, Overmold Black
· Environmental Compliance: RoHS

Product Features

· Transmission rate 6Gbps

· Meet SAS2.1 specification

· Low power

· Differential impedance 100ohms

· Self lock design

Applications

· Servers

· Data storage equipment

· Workstation

· RAID

· SAS port adapter

· Data/Communications

Signal Integrity

. Mated Connector Impedance: 100 ohm±15%

. Cable Absolute Impedance: 100 ohm±10%

. Cable Pair Matching: ±5 ohm

. Common Mode Impedance: 25 to 40 ohms

. Insertion loss: -6dB maximum up to 4.5Ghz;

11dB maximum up to 9Ghz.

. Crosstalk: -35 dB up to 6Ghz

Item	6G Internal HD MiniSAS 36P TO 4*SATA7P Cable
Cable Type	HD MiniSAS SFF-8643 to 4*SATA7P Cable
Connector 1	HD MiniSAS SFF-8643 connector x 1
Connector 2	SATA 7P connector x 4
Conductors	Tinned copper, 30AWG
Insulators	PE, natural color
Drain Wire	TC, 30AWG
Data transfer rate	6Gbps
Pin layout	Standard
OEM	Support

SFF 8087 SAS Splitter Cable

Mini-SAS to 4 SATA Forward Breakout Cable is an essential component of a hardware RAID configuration. This multi-lane forward cable coverts Mini-SAS connectors on RAID controllers (that are often shipped without cables) to 4 SATA drives. The combination of a slim ribbon cable design in a woven mesh sheath with locking connector latches provides a professional installation that minimizes the impact on airflow in a computer case.
